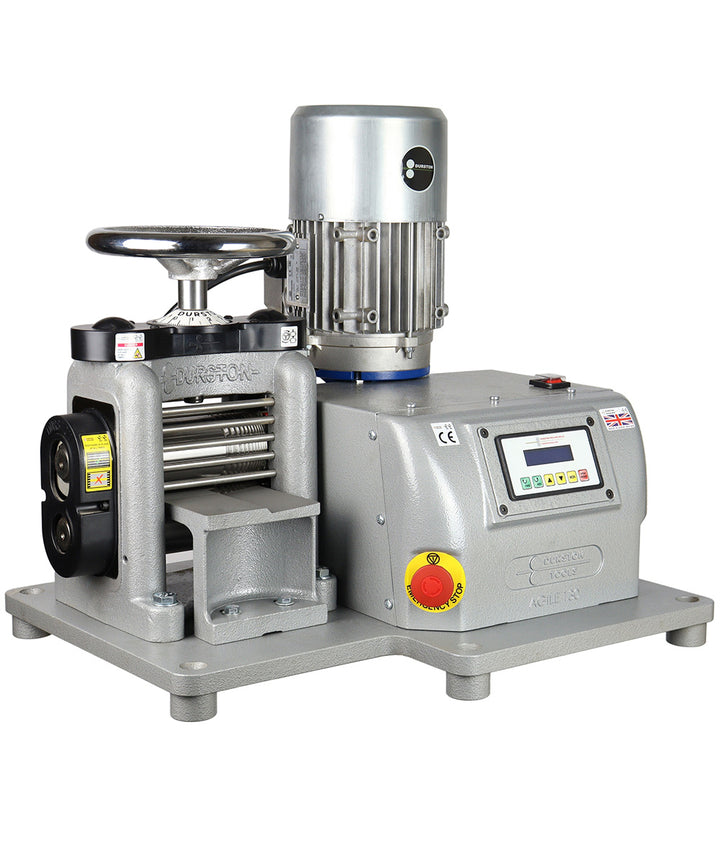

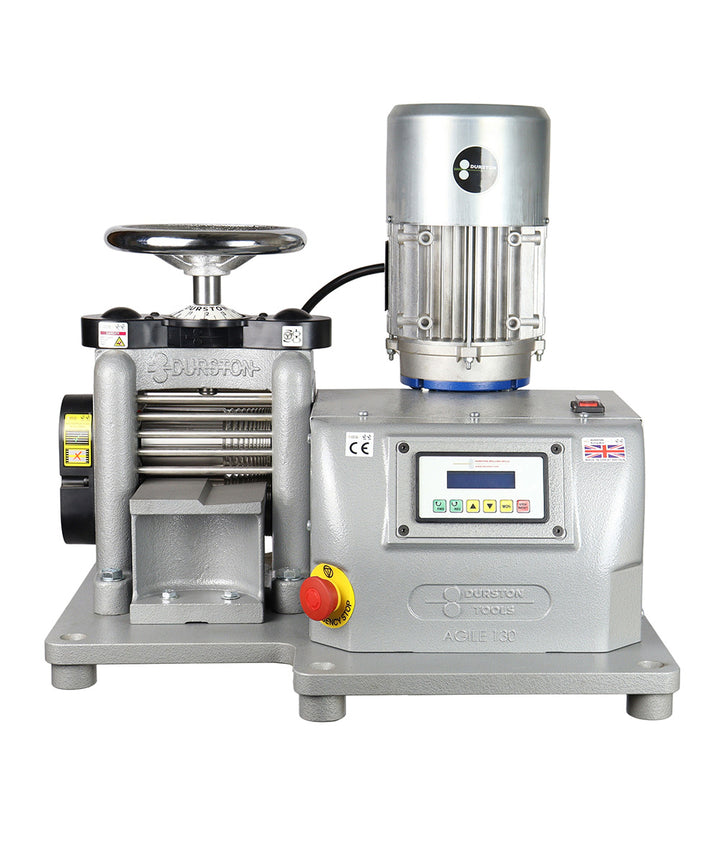

Durston® TUI C130 Combo. Power Rolling Mill - Single Sided

Economic version of Durston's Power Mills. These mills features one piece cast iron frame which securely holds the high quality steel rolls, which run in heavy duty roller bearings. The power mills are heavy because they are built to last forever. They are robust, durable and built to last a lifetime. The actual rolls, castings, gears etc are exactly the same mills and parts that we use on the existing DRM 130 power mills. The 3 differences are only: Steel main plate instead of cast-iron, sheet metal guard instead of cast-iron and one central emergency stop, everything else is the same.

WEIGHT 130 kg
PRODUCT WEIGHT (KG)

110KG

PRODUCT LENGTH (MM)

830

PRODUCT WIDTH (MM)

390

PRODUCT HEIGHT (MM)

540

NUMBER OF GROOVES

11

MAX. SHEET THICKNESS (MM)

ROLLER TYPE

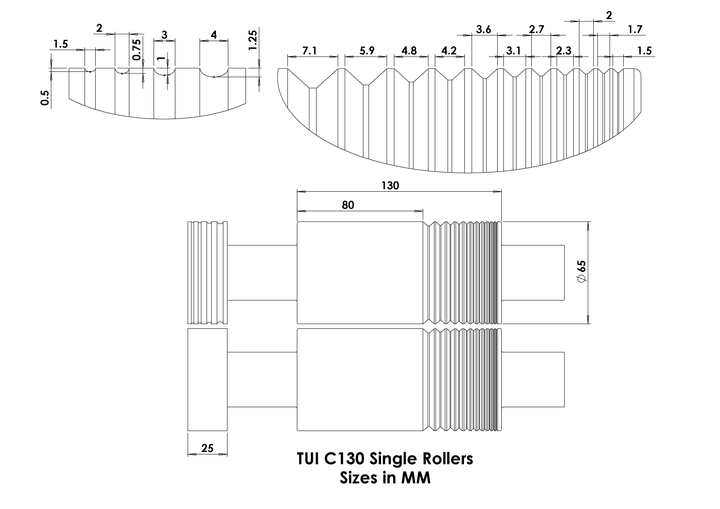

ROLLER DIAMETER (MM)

65

ROLLER LENGTH (MM)

SIDE EXTENSIONS

2 & 1.5mm, 3, 4

MAX. WIRE CAPACITY (MM)

VOLTAGE

110V, 220V

RANGE
